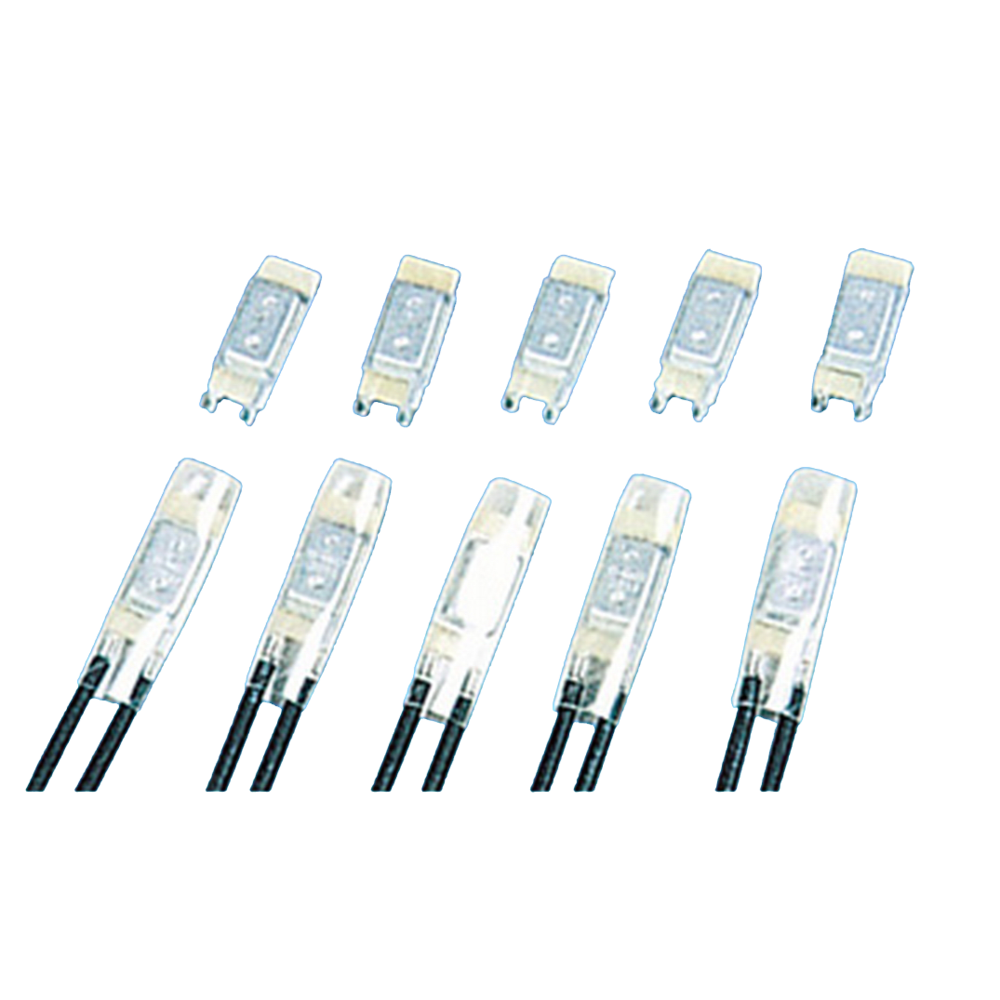

17AM-D

The 17AM-D is a thermal overload relay / motor thermal protection switch, which is designed with reasonable structure, compact size, large-capacity contacts, and long service life. Temperature of each bimetal has been calibrated precisely. The tripping temperature of the thermal switch range from 50°C to 170°C, in increment of 5°C.

17AM-D
      --- Thermal Protectors
      --- TP-D Series
      --- Life Cycle 5000 Time

Characteristics:

  • 16V-DC  20A
  • 115V-AC  22A
  • 250V-AC   8A
  • Open Temperature Range (50+/-5.0ºC ~ 155+/-5.0ºC)


Size:

Type      L            W                   H

   A       26       8.2+/-0.1      4.7+/-0.2

   B      28.8      8.2+/-0.1     4.7+/-0.2
