DIP MHz Ceramic Resonators

Ceramic resonators can be found in many circuit boards as they can be used as the source of the clock signal for digital circuits such as microprocessors where the frequency accuracy is not critical.[3] Quartz has a 0.001% frequency tolerance, while PZT has a 0.5% tolerance.
They are also likely to be found in timing circuitry for a wide array of applications such as TVs, VCRs, automotive electronic devices, telephones, copiers, cameras, voice synthesizers, communication equipment, remote controls and toys. A ceramic resonator is often used in place of quartz crystals as a reference clock or signal generator in electronic circuitry due to its low cost and smaller size.

A ceramic resonator is an electronic component that when combined with other appropriate components, can produce oscillations at a specific frequency. It consists of a voltage-variable capacitor that acts in some ways like a quartz crystal. Ceramic resonators are made of high-stability piezoelectric ceramics, generally lead zirconium titanate (PZT) which functions as a mechanical resonator. When voltage is applied, its piezoelectric "vibration behavior" causes an oscillating signal. The thickness of the ceramic substrate determines the resonance frequency of the device

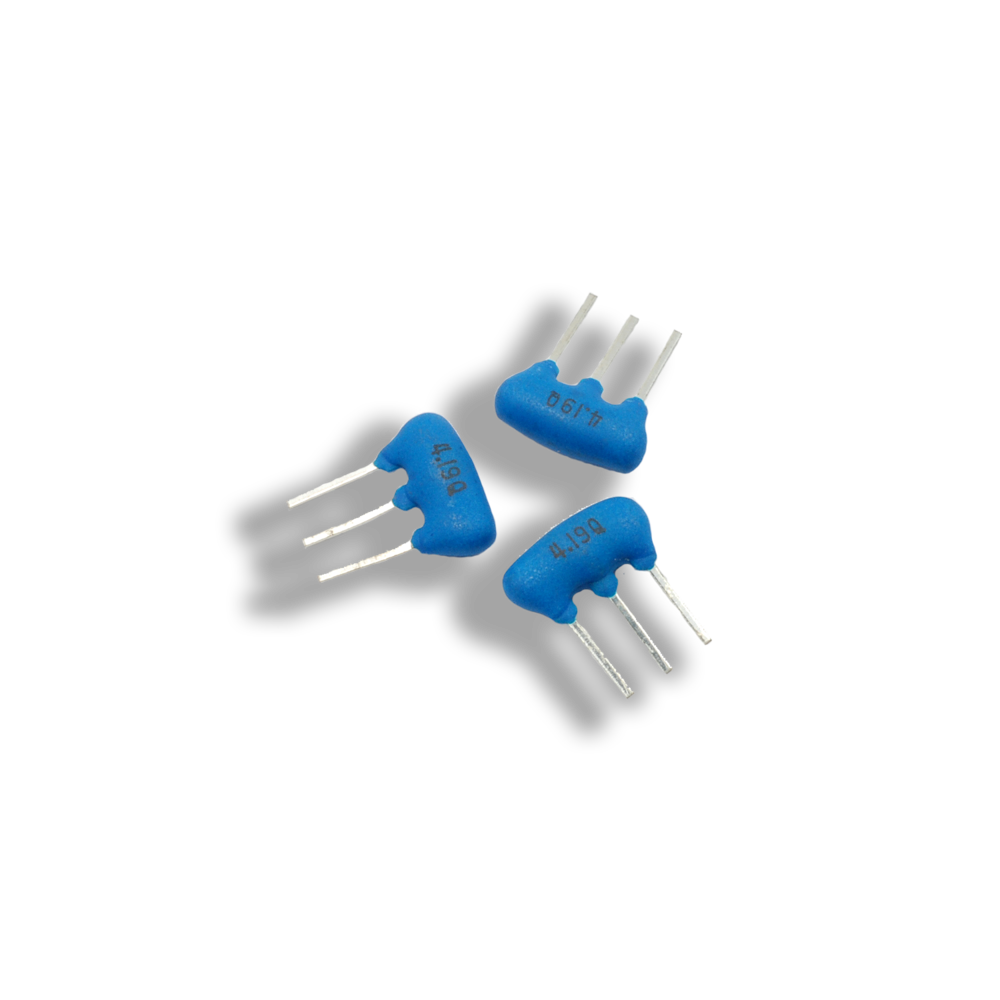

MHz DIP Type Ceramic Resonators   AGCR-TZTA, AGCR-TZTT(1.79~60.00 MHz)

AGCR-TZTA Series of Ceramic Resonator(1.79~60.00 MHz)

Technical Characteristics:



 Part Number

Frequency Range (MHz)

 Frequency Accuracy
(25 ºC)(%)

Stability in Temperature
(-20~+80 ºC)(%)

 Operating Temperature
( ºC)

 Aging for Ten
 Years (%)

 ZTA     MG

 1.79~6.00

 ±0.5

 ±0.3

 -20~+85

 ±0.3

 ZTAWS     MG

 1.79~6.00

 ±0.5

 ±0.3

 -20~+85

 ±0.3

 ZTALS     MG

 3.00~8.00

 ±0.5

 ±0.3

 -20~+85

 ±0.3

 ZTA     MT

 6.00~13.00

 ±0.5

 ±0.3

 -20~+85

 ±0.3

 ZTA     MX

 12.00~60.00

 ±0.5

 ±0.3

 -20~+85

 ±0.3




AGCR-TZTT Series of Ceramic Resonator with Built-in Capacitor(1.79~60.00 MHz)

Technical Characteristics:


 Part Number

Frequency Range (MHz)

 Frequency Accuracy
(25 ºC)(%)

Stability in Temperature
(-20~+80 ºC)(%)

 Operating Temperature
( ºC)

 Aging for Ten
 Years (%)

 ZTT     MG

 1.79~6.00

 ±0.5

 ±0.3

 -20~+85

 ±0.3

 ZTTWS     MG

 1.79~6.00

 ±0.5

 ±0.3

 -20~+85

 ±0.3

 ZTTLS     MG

 3.00~8.00

 ±0.5

 ±0.3

 -20~+85

 ±0.3

 ZTT     MT

 6.00~13.00

 ±0.5

 ±0.3

 -20~+85

 ±0.3

 ZTT     MX

 12.00~60.00

 ±0.5

 ±0.3

 -20~+85

 ±0.3
