Automotive Grade Bridge IC(eDP to Open LDI)

S2D13V70

S2D13V70 is an eDP(rev.1.4a) to Open LDI bridge device which can realize the connectivity between the eDP source to the display panel with the Open LDI interface. It can receive the data rate of 1.62Gbps/2.7Gbps with 1 lane/2lane eDP and convert it to transport with 2ch Open LDI signaling with the pixel clock frequency up to 148.5MHz (per 1ch). The specification is simple enough so that it can be easily inserted into existing system display architectures with minimal modifications required, making it an ideal solution for both existing and future designs.S2D13V70 is also qualified for automotive design including AEC-Q100 certification and several functional safety features.

S2D13V70's eDP Rx IP (rev1.4a) can also connect to DP (rev1.3 and 1.4) signals. Please contact us for details.


Features

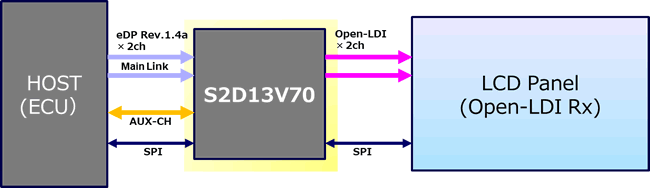

Simple Bridge S2D13V70

Power Supply

3.3V / 1.8V dual supply

Input

eDP rev.1.4a x 2Lane, Max 2.7Gbps/lane

Output

OpenLDI-Tx x 2Ch, Max120MHz/ch

Display resolution

up to 1920 x 1200@60fps

Host IF

SPI

Image Correction

8-bit Digital Gamma LUT + 2-bit Dithering

Safety Feature

SPI connection (checksum function by 16byte cache)
Input pixel clock/sync. signal monitoring
CRC (Full screen / Register setting / Frame comparison)
Output watermark function
Blank screen
Error / Interrupt pins

Automotive QA

AEC-Q100 qualifications
Ta : -40 ~ 105

Others

System Clock : 48MHz for always running clock
SPI Bridge (SPI Slave to Master bridge)
Splitter function (Line split / LR split)

Package PFBGA8-81 (8mm x 8mm x 1.2mm, 0.8mm pitch)
Briefsheet PDF
Status Under Development


Splitter Function

Splitter Function(Line or LR split)
Resolution size : Possible to sprit dual display within 1920×1080 resolution.


Briefsheet: https://global.epson.com/products_and_drivers/semicon/pdf/id003037.pdf
