Differential Oscillator

EPSON Differential Oscillator

EPSON differential output oscillator--in order to comply with the increasing needs of network communication and FPGA applications and to meet the various output interfaces on the market, Epson provides corresponding products that fulfills can customers’ needs—including the high stability models. These allows customers to select the products that are more suitable for use in the early stages of development.

Below is the brief introduction of two models of differential output oscillator

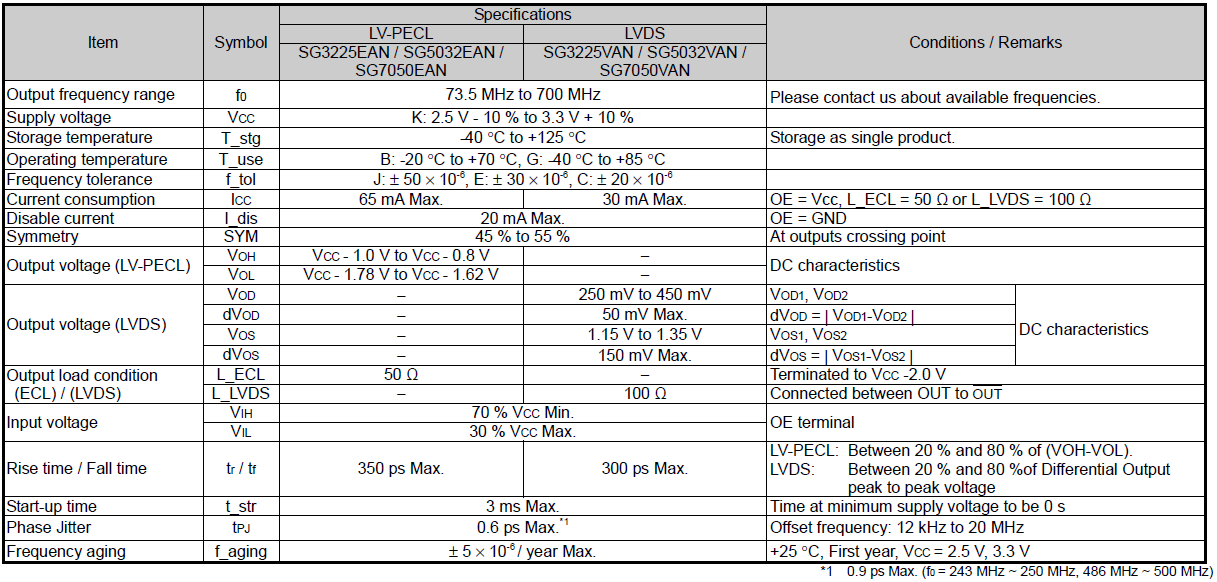

SG7050/5032/3225-VAN/EAN

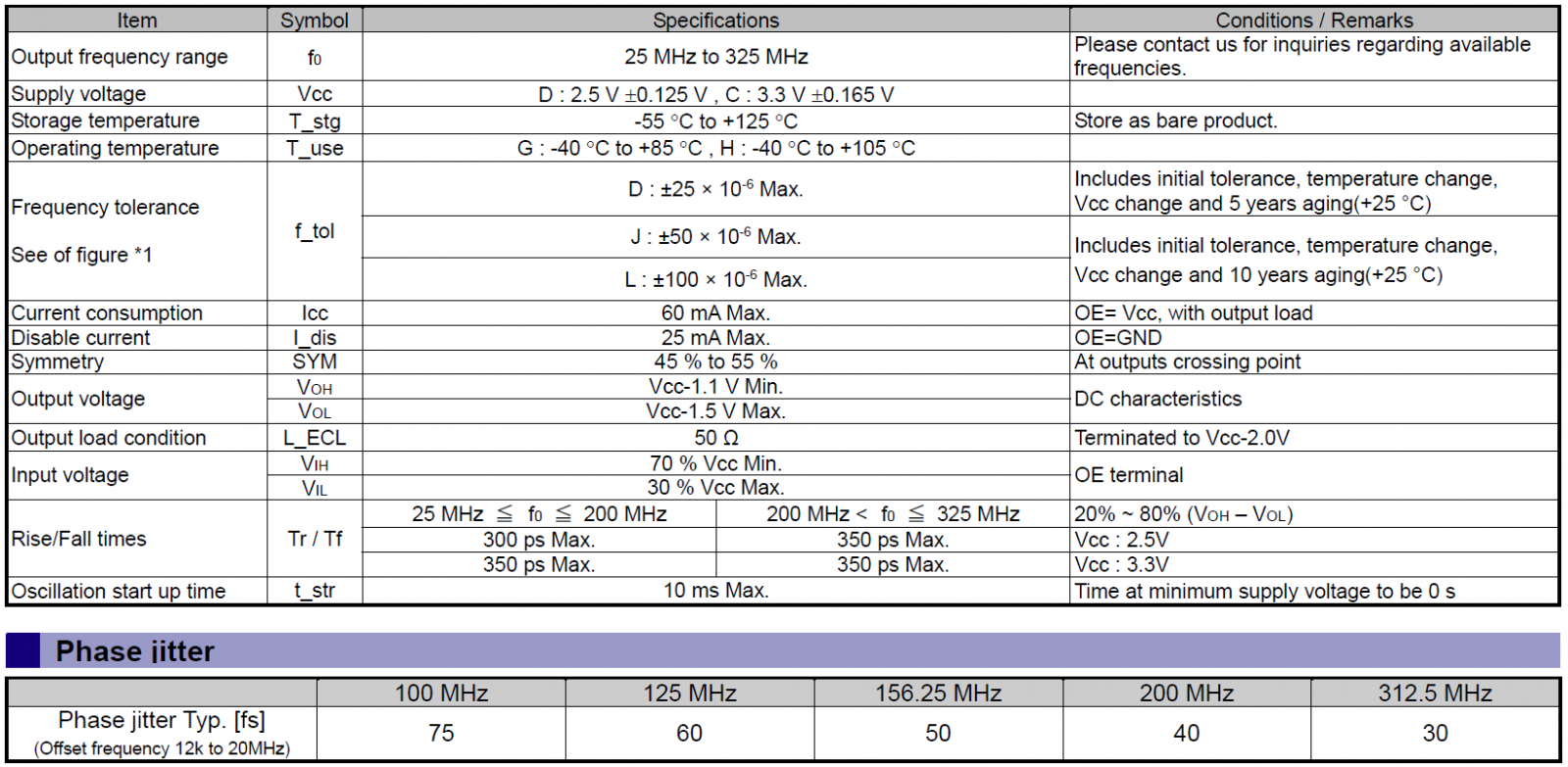

SG7050/3225-VEN/EEN
(HIGH STABILITY)

Supply voltage

2.5 to 3.3V

2.5V or 3.3V

Phase jitter

0.6ps Max.

0.1ps Max.

Frequency range

73.5MHz to 700MHz

25MHz to 325MHz

SG7050/5032/3225-VAN/EAN


SG7050/3225-VEN/EEN
