Quartz Crystal Circuit Evaluation
|
|
|
|
Circuit Evaluation – The Key to Ensure Reliability of Product
|
|
|
In modern electronic products, quartz crystal play an essential role. Quartz chips, as piezoelectric materials, generate stable frequency signals through applied voltage, which then feed to active components. Optimizing quartz crystal circuit design is critical for product's performance and reliability. Argo offers professional quartz crystal circuit evaluation services. Our team, processed and equipped with extensive experience and advanced instruments, can help to validate and optimize quartz crystal circuits during design stage in order to minimize the risk.
|
|
|
|
Standard Quartz Crystal Circuit Diagram & Important Considerations
|
|
|
|
|
Applied to a standard quartz crystal circuit, frequency accuracy mainly depends on the adjustment of two ground capacitors (CG/CD). A drain resistance (RD) restricts the current flowing through the quartz crystal to reduce the risks of accelerated aging or broken. However, the health of the quartz crystal ciriut is often an overlooked potential risk that needs careful evaluation to prevent the failure of oscillation.
|
|
|
|
|
Thus, Argo's quartz crystal circuit evaluation includes three key measurements:
|
|
|
1. Frequency Accuracy
-
Description: Measures the degree of deviation between the actual frequency and the target frequency.
-
Standard: Within ±10 ppm (parts per million) deviation.
-
Importance: Precise frequency is fundamental to electronic device operating properly.
|
|
|
2. Power Consumption
-
Description: Measures the current through the crystal and calculates power consumption.
-
Standard: Below the defined specification of crystal.
-
Importance: Excessive power accelerates crystal aging and shortens product lifespan.
|
|
|
3. Negative Resistance
-
Description: Evaluates the healthiness of quartz crystal circuit by checking if there's sufficient negative resistance to sustain oscillation and identify whether startup risk exists.
-
Standard: At least five times higher than the Equivalent Series Resistance (ESR) stated in the crystal specification.
-
Importance: Negative resistance is a critical indicator of quartz crystal circuits. Insufficient levels may prevent the oscillation or lead to unstable frequencies.
|
|
|
|

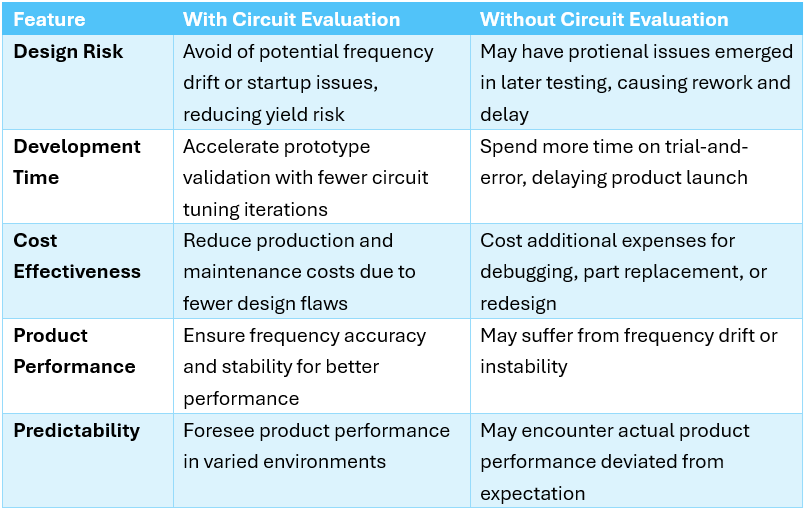

Why Circuit Evaluation During the Design Stage Is Needed?
|
|
|
|
ARGO's Professional Services
|
|
|
ARGO Technology Co., Ltd. is committed to providing excellent quartz crystal circuit evaluation and adjustment recommendations. Our team leverages extensive experience with cutting-edge equipment to accurately measure quartz crystal parameters. In addition, we help to optimize external circuit designs and recommend components to ensure your product's reliability.
|
|
|
ARGO is EPSON quartz and frequency control products and IC professional agents, about all kinds of related products, the above is only a brief introduction, if you have any questions, please feel free to contact the company, the company will be assigned someone to do further explanation and service for you.
|
|
|
