2024.June E-Newsletter
|
|
|
|
Introduction to Epson MHz OSC
|
|
EPSON SPXO (Simple Packaged Crystal Oscillators) products mainly have three major product lines:
|
|
|
-

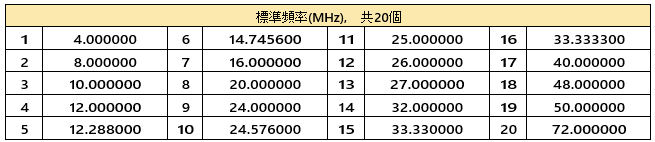

FIXED-FREQUENCY OSCILLATOR: The fixed-frequency OSC provides a standard frequency of 32.768kHz and an additional 20 commonly used MHz frequencies. Sizes ranging from 7.0*5.0mm to 2.0*1.6mm are available for customers to choose from.
-
PROGRAMMABLE OSCILLATOR: The programmable OSC (P-SPXO) can support frequency range from 0.76MHz to 170MHz. The convenience of programmable OSC is it can significantly shorten the product development schedule for customers and has a strong advantage of short delivery time.
-
DIFFERENTIAL OSCILLATOR: The quartz chip inside the differential OSC is developed and manufactured through EPSON’s unique High- Frequency Fundamental (HFF) technology. This high-frequency fundamental OSC with differential output can provide the lowest Phase Jitter, allowing customers to avoid the concern of packet lost when using this product.
|
|
|
The following is a basic description of the MHz OSC product line:
|
|
|
|

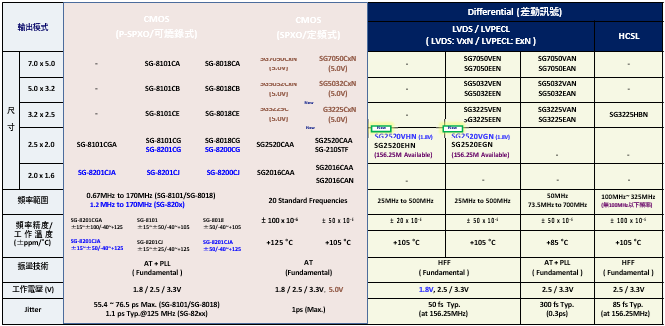

Introduction to Oscillator Products
|
|
|
|

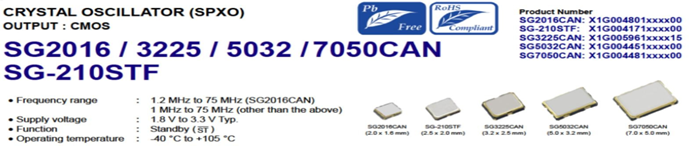

Fixed-frequency SPXO, CMOS Output
|
|
|
|

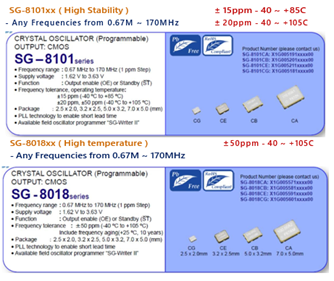

Programmable SPXO, CMOS Output
|
|
|
|
(Programmable Oscillator, P-SPXO)
|
|
|
|

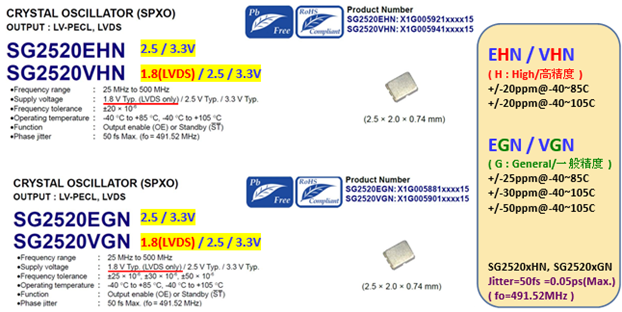

HFF OSC, Differential Output
|
|
|
|
Temperature Compensated Oscillator
|
|
|
|

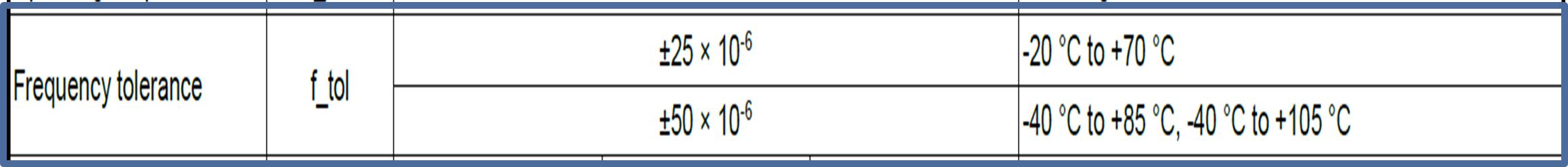

TCXO (Temperature Compensated Oscillator) Specification Comparison
|
|
|
ARGO is EPSON quartz and frequency control products and IC professional agents, about all kinds of related products, the above is only a brief introduction, if you have any questions, please feel free to contact the company, the company will be assigned someone to do further explanation and service for you.
|
|
|
