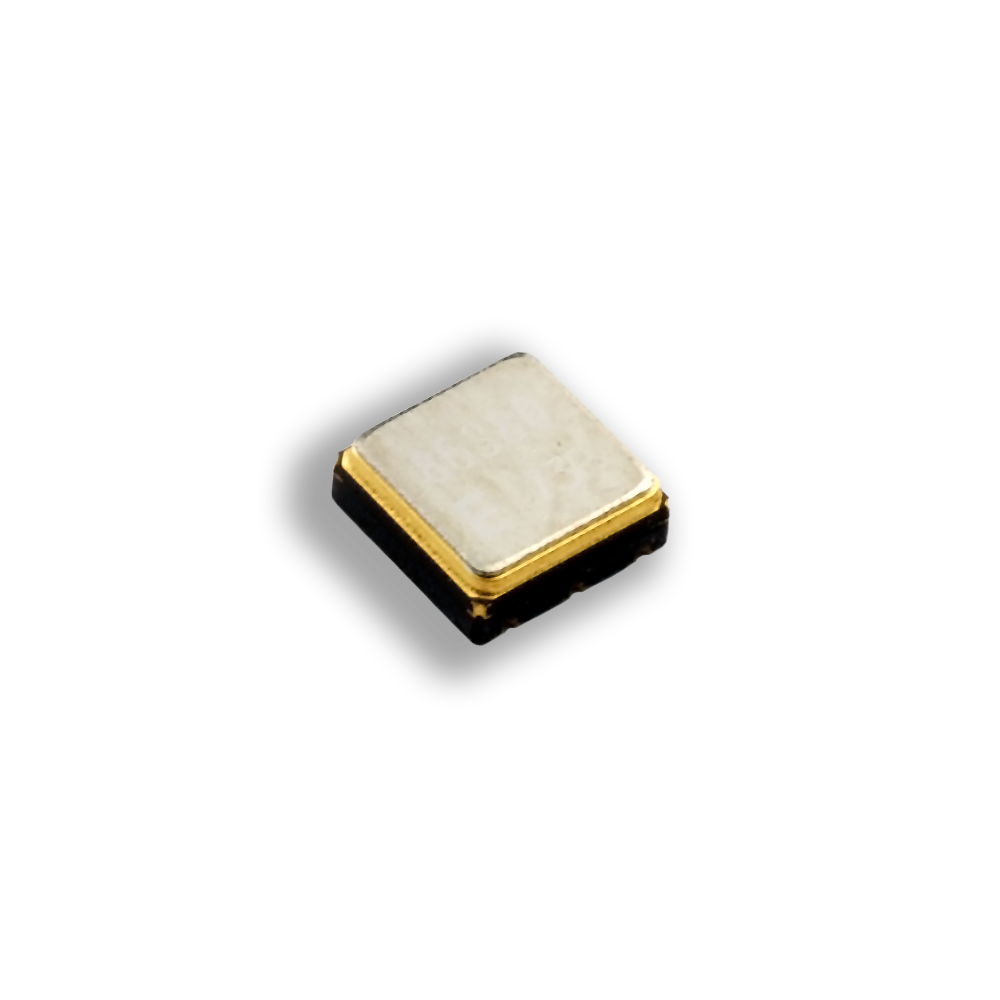

SMD SAW Filter

SAW Filters can be widely used in various wireless communication systems, televisions, video recorders and GPS receivers. The main function is to filter excess noise, which is easier to install and smaller than traditional LC filters.
At present, there are many products with antennas on the market, such as: GPS, base stations and other products will use high-frequency antennas, and the products are getting smaller and smaller, and the structure is becoming more and more complicated. Therefore, the package of SAW Filter is gradually shifting from DIP to small SMD components.

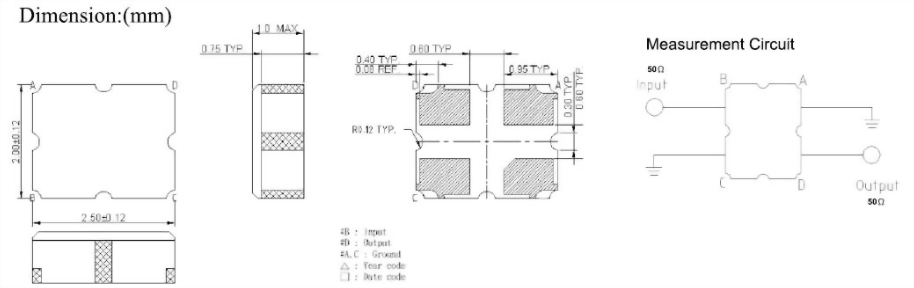

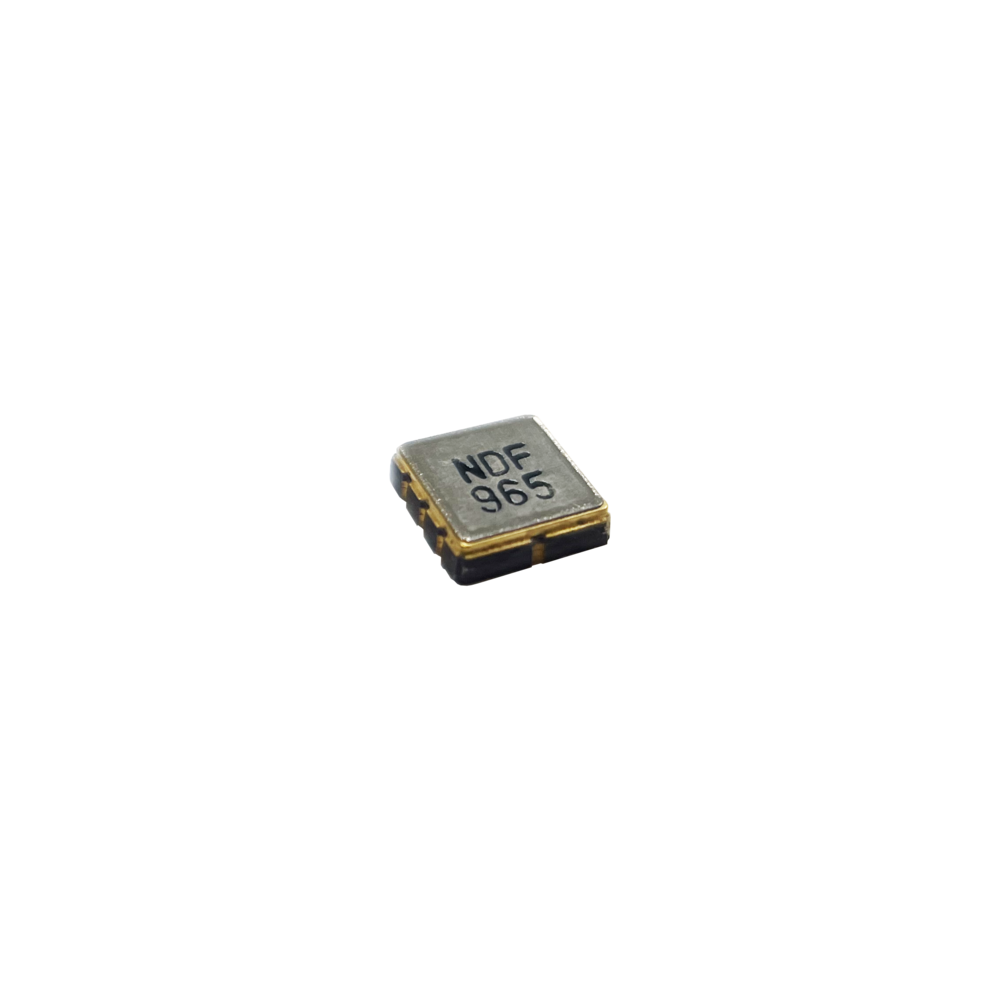

SMD Type SAW Filter for GPS      AGSD-SSTC2520 1575.42 MHz for GPS

Maximum Rating:

  • 1. Maximum Input Signal Level: +10 dBm
  • 2. Maximum DC Voltage: 5 V
  • 3. Operating Temperature: -40 ºC ~ +85 ºC
  • 4. Storage Temperature: -50 ºC ~ +100 ºC



Electrical Characteristics:



Item

Unit

Min.

Type.

Max.

Center frequency Fc

(dB)

-

1575.42

-

Insertion loss within Fc +/- 1 MHz IL

(dB)

-

2.7

3.5

Amplitude ripple (p-p) within Fc +/- 1 MHz

(dB)

-

0.07

1.0

Attenuation (Reference level from 0 dB)
  • 1475.42 MHz
  • 1535.42 MHz
  • 1615.42 MHz
  • 1675.42 MHz

(dB)
(dB)
(dB)
(dB)

35.0
30.0
30.0
40.0

40
37
60
62

-
-
-
-

VSWR within Fc +/- 1 MHz



-

1.3

2.0

Source impedance Zs

Ω

-

50

-

Load impedance ZL

Ω

-

50

-

Note1. No matching network required for operation at 50 Ω.
