SMD Crystal FILTER(MCF)

SMD crystal filter is a narrow frequency band pass filter. Due to the high-Q characteristics of the crystal, its pass-band bandwidth is narrower than the ordinary ceramic filters, and also it can pass multiple sets of filters to make the bandwidth more accurate. In order to meet the size of the handheld device and the convenience of PCB printing, the quartz crystal filter also provides SMD packaging. Usually used in low-frequency communication equipment, such as walkie-talkies, base stations, etc.

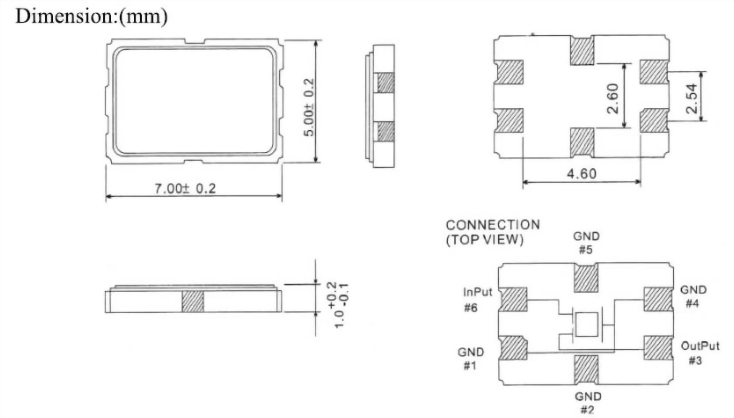

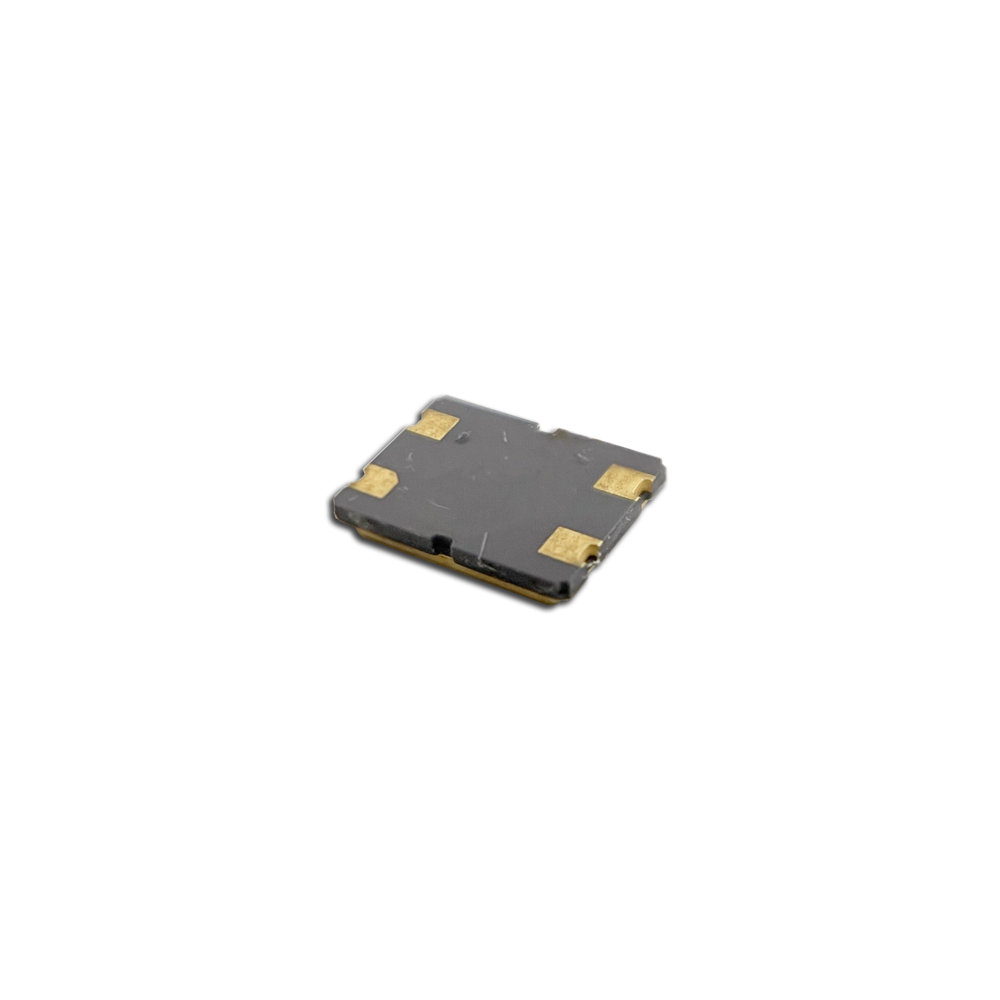

SMD Type MCF (Monolithic Crystal Filters)    AGMCF-SF7050

Features:

  • Small size, light weight.
  • Wide frequency range.
  • Seam type.

12.5kHz Channel Spacing

Type

Freq.

Poles

Pass Band Width

Stop Band Width

Ripple

Loss



dB

kHz

dB

kHz

dB

dB

21R08A

21.4 MHz

2

3

± 3.75 kHz

20

± 18 kHz

0.5

1.5

45R08A

45.0MHz

2

3

± 3.75 kHz

10

± 12.5 kHz

1.0

2.5

25.0kHz Channel Spacing

Type

Freq.

Poles

Pass Band Width

Stop Band Width

Ripple

Loss



dB

kHz

dB

kHz

dB

dB

21R15A

21.4 MHz

2

3

± 7.5 kHz

18

± 25 kHz

0.5

1.5

45R15A

45.0 MHz

2

3

± 7.5 kHz

15

± 25 kHz

1.0

2.0



50.0 kHz Channel Spacing

Type

Freq.

Poles

Pass Band Width

Stop Band Width

Ripple

Loss



dB

kHz

dB

kHz

dB

dB

21R30A

21.4 MHz

2

3

± 15 kHz

15

± 45 kHz

0.5

1.5

45R30A

45.0 MHz

2

3

± 15 kHz

15

± 50 kHz

1.0

2.0
